FRENCH PRODUCTION
MSP2000

COMPRESSORS
DIESEL
MSP2000-3000

The MSP line of compressors is recognized by construction professionals for its reliability and performance. Customizable and adaptable, our compressor models range from 2000 to 3000 l/min and are designed for both regulated (Stage V motorization) and non-regulated areas.

POWERFUL AND COMPACT COMPRESSORS

MSP, COMPRESSORS ADAPTED TO THE REQUIREMENTS OF THE CONSTRUCTION INDUSTRY

The MSP range of compressors is the most compact machine on the market. Thanks to its design and the optimized layout of its internal components, the MSPs have a balanced weight distribution on the axle; for better maneuverability on site.

The design of the MSP series also provides excellent accessibility to the main compressor components. This feature is critical to facilitate maintenance and reduce compressor downtime.

KUBOTA ENGINE

All MSP diesel compressors are equipped with Kubota engines. Known worldwide for the quality of its components, the Japanese company and MAC3 have been working together for many years to offer the most efficient mobile compressors for construction sites.

For machines that meet the requirements of regulations in force in regulated areas (European Union and North America), MAC3 equips its machines with Stage V engines. Less polluting and more economical, these engines are the result of Kubota's know-how.

MSP3000

DOCUMENTATION

5 COMPRESSOR CONFIGURATIONS

MSP COMPRESSORS: VERSATILE AND ADAPTABLE

In order to meet the different needs of construction professionals, the MSP range of compressors is available in 5 different configurations:

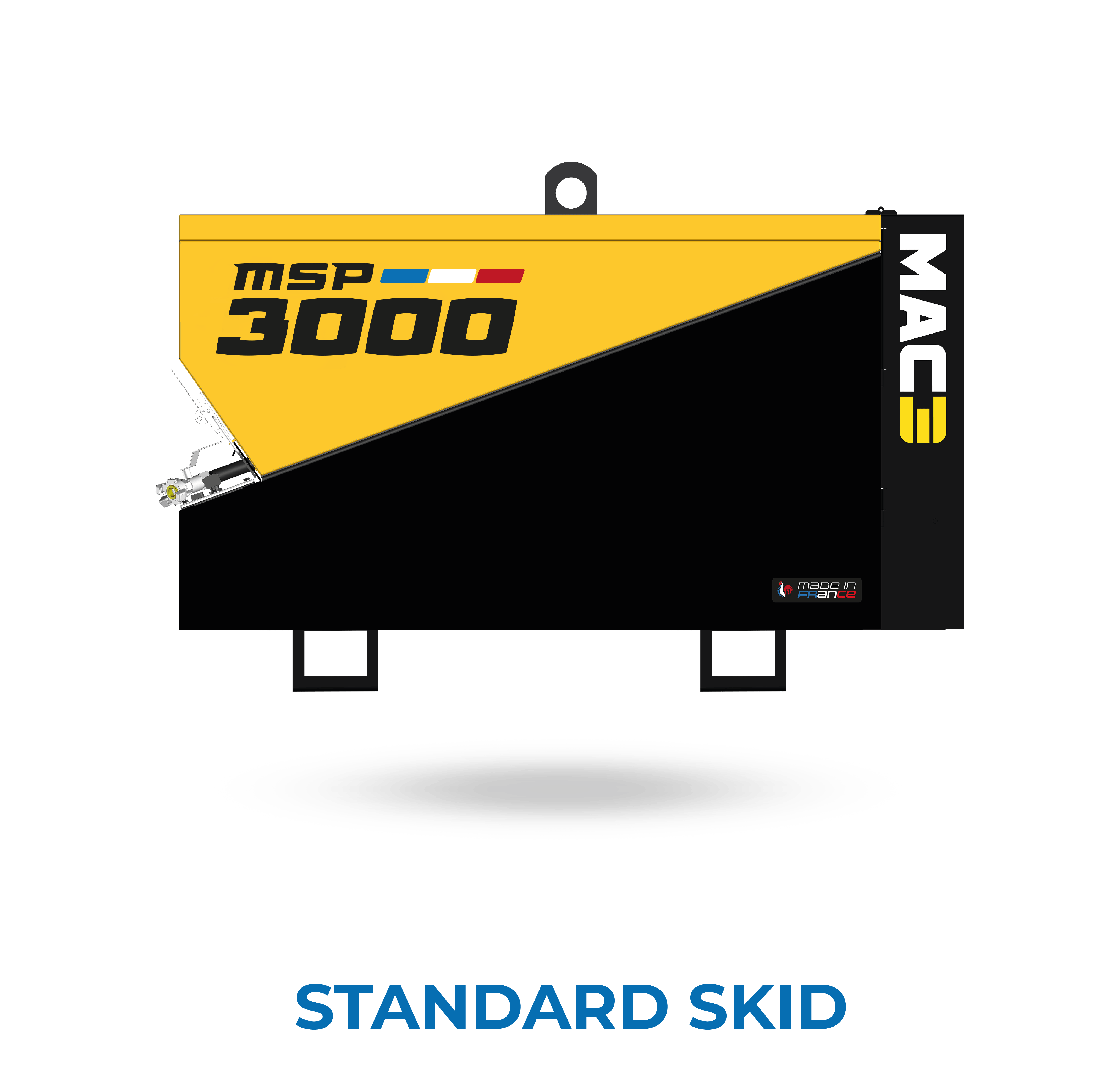

  • Standard SKID compressor, including remote drain.

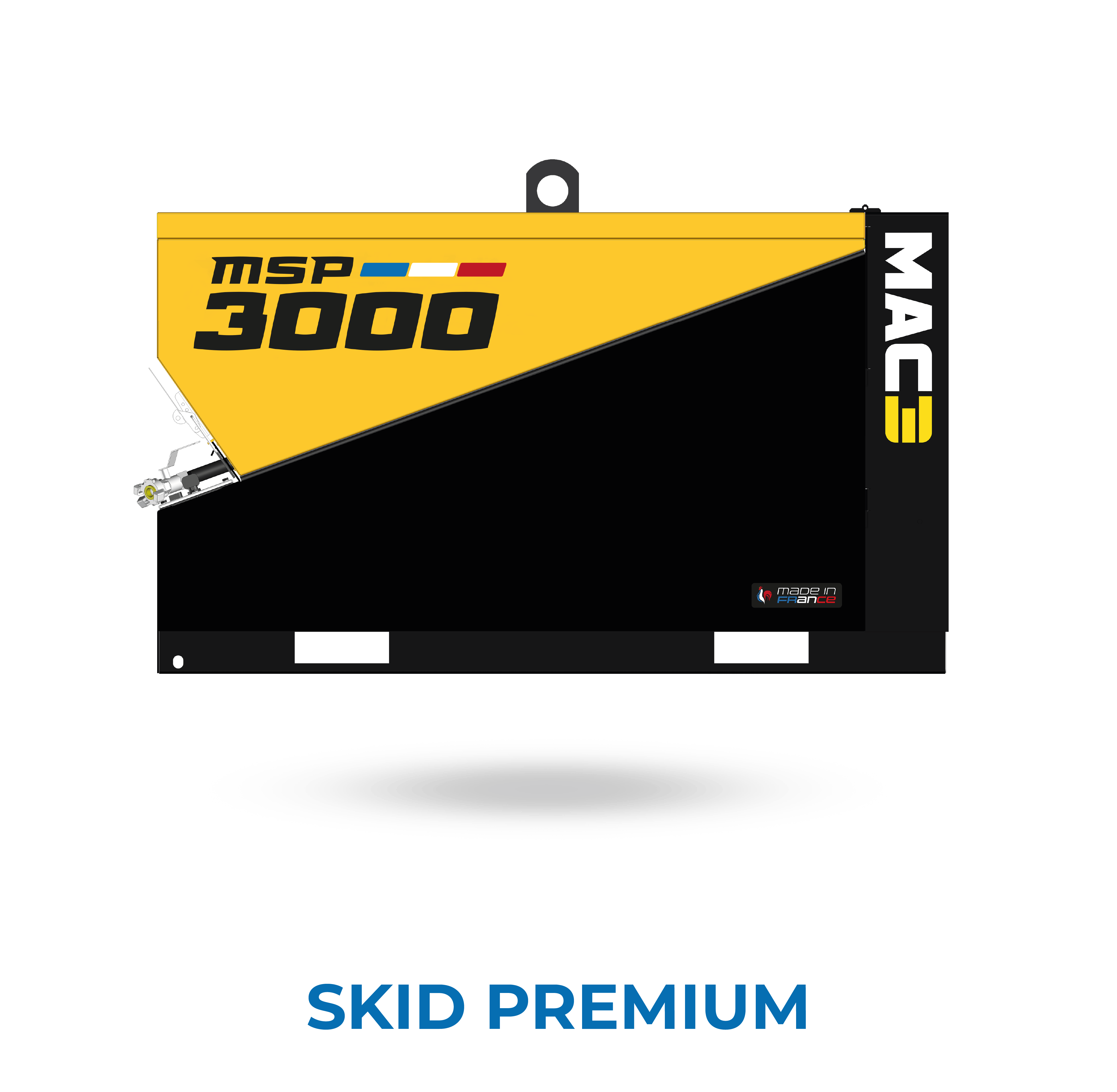

  • SKID Premium compressor, with remote drain, fork passage on each side and liquid retention tank.

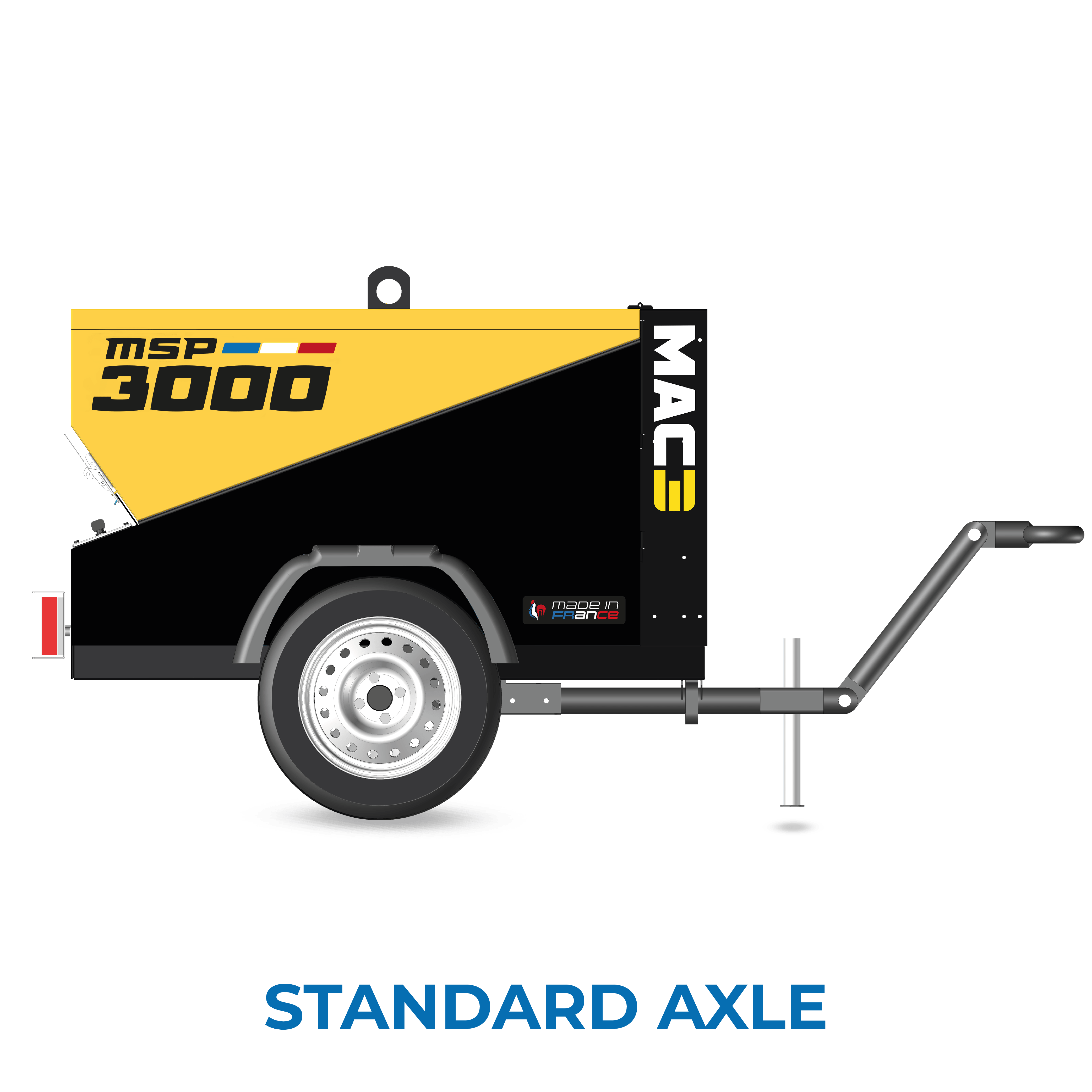

  • Standard axle compressor.
  • Premium axle compressor, including remote drain and liquid retention tank.

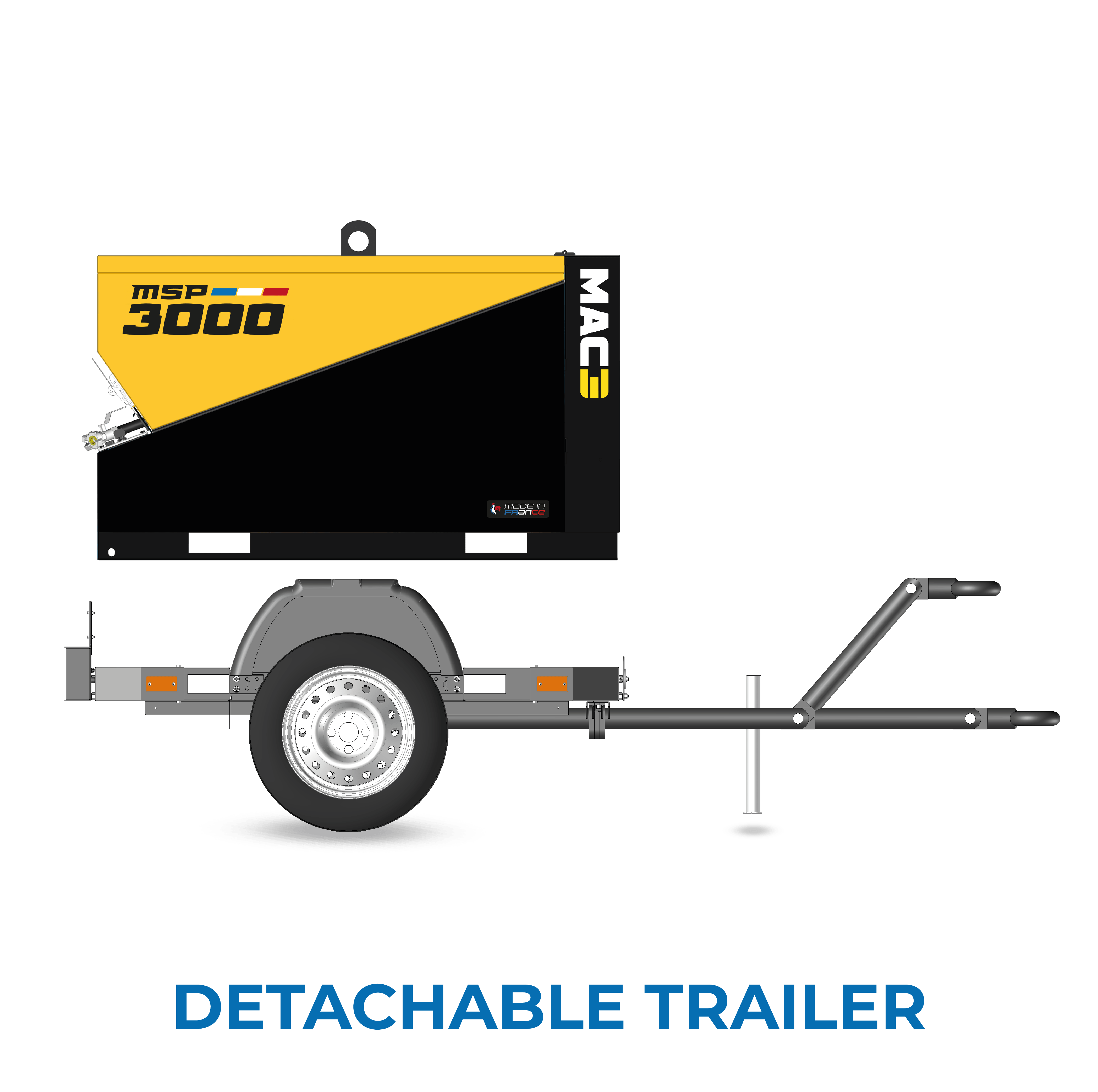

  • Trailer mounted compressor, combining a SKID Premium compressor and a custom built independent trailer.

FIELDS OF APPLICATION

construction

CONSTRUCTION

crafts

CRAFT

Building

BUILDING

agriculture

AGRICULTURE

surface treatment

SURFACE TREATMENT

mines and quarries

MINES AND QUARRIES

CIVIL ENGINEERING - INFRASTRUCTURE NETWORKS

CIVIL ENGINEERING-INFRASTRUCTURE NETWORKS

SPECIFICATIONS

PERFORMANCE

MSP2000 regulated zonesMSP2500 regulated zonesMSP3000 regulated zones
Working pressure7 bar8.5 bar10 bar7 bar8.5 bar10 bar7 bar8.5 bar10 bar
100 psi123 psi145 psi100 psi123 psi145 psi100 psi123 psi145 psi
Air flow2.1 m³/min1.9 m³/min1.8 m³/min2.5 m³/min2.2 m³/min2.0 m³/min2.9 m³/min2.5 m³/min2.1 m³/min
74 cfm67 cfm65 cfm90 cfm78 cfm71 cfm105 cfm88 cfm75 cfm
Noise level97 db(A) LWA98 db(A) LWA
Compressor oil circuit6,5 L
Compressed air outlets 2 x G1/2
MSP2000 unregulated areasMSP2500 unregulated areasMSP3000 unregulated zones
Working pressure7 bar8.5 bar10 bar7 bar8.5 bar10 bar7 bar8.5 bar10 bar
100 psi123 psi145 psi100 psi123 psi145 psi100 psi123 psi145 psi
Air flow2.0 m³/min1.9 m³/min1.8 m³/min2.5 m³/min2 m³/min1.8 m³/min2.9 m³/min2.3 m³/min2.1 m³/min
70 cfm67 cfm65 cfm90 cfm70 cfm65 cfm105 cfm71 cfm75 cfm
Noise level97 db(A) LWA98 db(A) LWA
Compressor oil circuit6,5 L
Compressed air outlets2 x G1/2

MOTORIZATION

MSP2000 regulated zonesMSP2500 regulated zonesMSP3000 regulated zonesMSP2000 unregulated areasMSP2500 regulated zonesMSP3000 regulated zones
EngineKUBOTA D1105 Stage V TIER 4KUBOTA D1105
Power rating13.0 kW18.1 kW13.0 kW18.1 kW
17.4 hp24.3 hp17.4 hp24.3 hp
Fuel tank40 L

DIMENSIONS AND WEIGHT

MSP SKID standardMSP SKID PremiumMSP Standard axleMSP Premium AxleMSP Trailer
Dimensions (L*W*H)1550*760*970 mm1550*760*890 mm 2886*1190*1328 mm 2886*1190*1328 mm2890*1240*1340 mm
61*29,9*38,2 in. 61*29,9*35 in. 114*47*52 in. 114*47*52 in. 114*49*53 in.
Weights MSP2000 - 2500 - 3000458 to 487 kg - 1010 to 1074 lb465 to 490 kg - 1025 to 1080 Ib533 to 562 kg - 1175 to 1230 Ib551 to 576 kg - 1215 to 1270 Ib601 to 626 kg - 1325 to 1380 Ib
