Performance, reliability and simplicity
MAC3 has developed a wide range of concrete breakers from 15 to 40 kg. Popular with construction professionals for their performance, reliability and ease of maintenance, MAC3 breakers are the ideal tools for all demolition work.

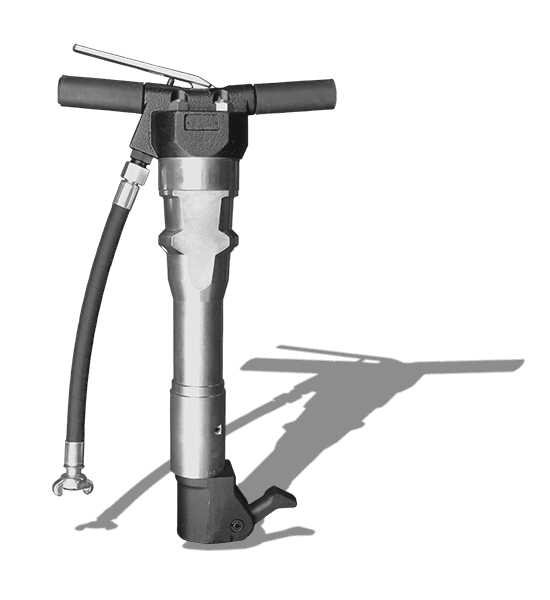

CONCRETE BREAKERS
HIGHLIGHTS
40% energy saving - low compressed air consumption
40% less mooving parts - Increased reliability
0% lubrication for operation - design and steel quality allowing self-lubrication of the tool
FEATURES
Monobloc cylinder machined in the steel bar
- Limited requested parts
- Better resistance over time
- Optimization performance
Heat treatment
- Mechanical characteristics optimization
- Self-lubrication on operation
Zinc-plated surface treatment
- Better protection against corrosion
Direct strike on air cushion
- Reliability and longevity
- Comfort in use
Easy access to distribution
- Easy maintenance

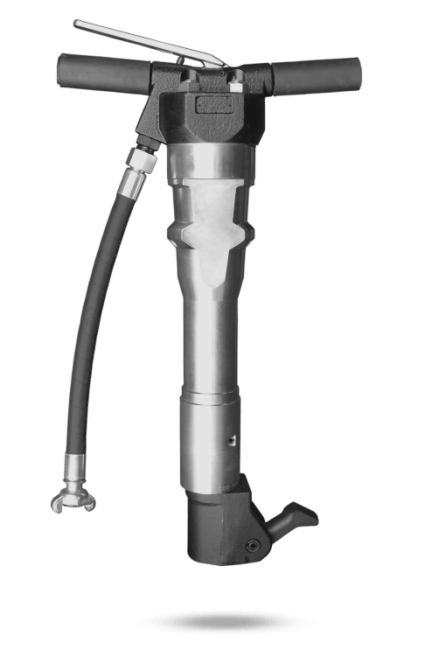

Latch fastener
- Quicker tool changes
- Safety for users
DOCUMENTATION
APPLICATIONS
FIELDS OF APPLICATION
SPECIFICATIONS
TECHNICAL DATA
| SILENCER* | SECURITY** | WEIGHT | LENGTH | CADENCE | AIR CONSUMPTION | SHANK SIZE | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MODEL | kg | Ib | mm | in. | l/min | cfm | Type | mm | in. | |||
| BB15 - MAC40T | ● | ○ | 19,8 | 43,6 | 570 | 22,4 | 1 300 | 1 200 | 42,4 | Hex | 22 x 82 | 7/8" x 3 1/4" |
| BB15 - MAC40T | ● | ○ | 20,2 | 44,5 | 596 | 23,5 | 1 300 | 1 200 | 42,4 | Hex | 25 x 108 | 1" x 4 1/4" |
| BB27 - MAC60TS | ● | ○ | 26 | 57,3 | 704 | 27,7 | 1 200 | 1 200 | 42,4 | Hex | 28 x 160 | 1 1/8" x 6" |
| BB27 - MAC60TS | ● | ○ | 26 | 57,3 | 704 | 27,7 | 1 200 | 1 200 | 42,4 | Hex | 32 x 160 | 1 1/4" x 6" |
| BB32 - MAC60T | ○ | ○ | 32 | 71 | 704 | 27,7 | 1 150 | 1 200 | 42,4 | Hex | 28 x 160 | 1 1/8" x 6" |
| BB32 - MAC60T | ○ | ○ | 32 | 71 | 704 | 27,7 | 1 150 | 1 200 | 42,4 | Hex | 32 X 160 | 1 1/4" x 6" |
| BB40 - MAC90T | ○ | ○ | 38 | 84 | 720 | 28,3 | 1 100 | 1 600 | 56,5 | Hex | 28 x 160 | 1 1/8" x 6" |
| BB40 - MAC90T | ○ | ○ | 38 | 84 | 720 | 28,3 | 1 100 | 1 600 | 56,5 | Hex | 32 x 160 | 1 1/4" x 6" |
● = in standard
○ = in option
RANGE OF CONCRETE BREAKERS
CLASSIC
