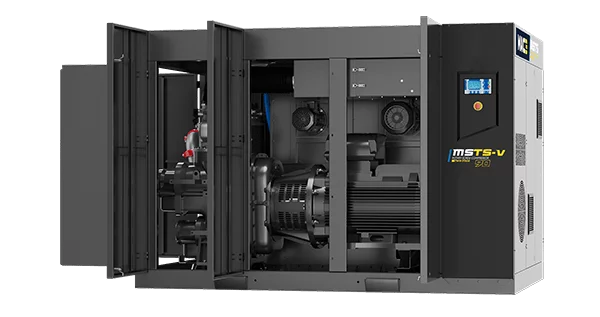

TWO-STAGE COMPRESSORS, MSTS-V
This new compressor range offers state-of-the-art performance and efficiency.
- Energy saver
- Robust
- Ergonomic
MSTS-V
HIGHLIGHTS
Performances
- Up to 15% energy savings compared to a single-stage compressor
- Noise level reduction
- Operation up to 45 degrees ambient
- Optimum cooling with low back pressure
- Heat recovery (optional)
- Very high efficiency IE4 motor
- Reduction of pressure drops
- Frequency inverter driven cooling fan
- Integrated centrifugal separator and condensate drain zero-loss
Ergonomic
- Designed for easy maintenance
- Electronic control with LCD display
DOCUMENTATION
-
To access more materials, please visit
.
EQUIPMENT
WEG motor
- IP55 with class F insulation
- IE4 efficiency
SMARTRONIC PLUS electronic controller
- Alarm and preventive maintenance
- Remote control - Weekly timer
- Touch screen
- Scada communication or WEB server (RS 485)
Direct drive
- Flexible coupling
- Bell housing coupling protection
DANFOSS inverter
Twin-stage lubricated screw
- Increases capacity
- Low rotation speed
- Long life expectancy
Optimized intake system
- Intake of fresh air from the environment
- Particles up to 3 microns
- Better performance and easier maintenance
Premium cooling system
- Separate air and oil cooling
- Cooling turbine
- Control by frequency inverter
TWIN-STAGE SCREW
- Twin-stage compression design
- Up to 10% more efficiency
- Up to 10% more flow with the same power on the shaft
- Reduced axial forces
- Low rotation speed
= INCREASE IN ROTOR LIFETIME
FIELDS OF APPLICATION
PERFORMANCE
| POWER | FLOW RANGE M3/MIN | AIR OUTLET | DIMENSIONS | WEIGHT | SOUND LEVEL | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| MODEL | kW | HP | 7.5 bar | 8.5 bar | 10 bar | 13 bar | BSP | mm (L x W x H) | kg | dB (A) |
| MSTS-V 90 | 90 | 125 | 5,27 - 18,08 | 5,30 - 17,14 | 5,18 - 15,68 | 5,10 - 13,52 | DN65 | 2775 x 1805 x 1926 | 3835 | 75 |
| MSTS-V 110 | 110 | 150 | 6,98 - 22,81 | 6,83 - 21,46 | 6,81 - 20,00 | 6,80 - 17,20 | DN65 | 2775 x 1805 x 1926 | 4200 | 75 |
| MSTS-V 132 | 132 | 180 | 7,85 - 27,57 | 7,83 - 26,17 | 7,53 - 24,31 | 7,47 - 21,26 | DN80 | 2950 x 1950 x 2000 | 4675 | 75 |
| MSTS-V 160 | 160 | 220 | 8,47 - 32,44 | 8,42 - 30,64 | 8,40 - 28,03 | 8,10 - 22,14 | DN80 | 2950 x 1950 x 2000 | 5300 | 76 |
| MSTS-V 200 | 200 | 270 | 11,79 - 42,86 | 11,77 - 39,94 | 11,62 - 37,01 | 11,40 - 30,54 | DN100 | 3500 x 2250 x 2350 | 6550 | 78 |
| MSTS-V 250 | 250 | 340 | 17,14 - 51,82 | 17,06 - 48,93 | 16,70 - 45,68 | 16,37 - 36,70 | DN100 | 3500 x 2250 x 2350 | 9400 | 79 |
| MSTS-V 315 | 315 | 430 | 16,80 - 61,78 | 16,77 - 59,01 | 16,73 - 54,97 | 30,18 - 45,73 | DN100 | 3500 x 2250 x 2350 | 9680 | 80 |
